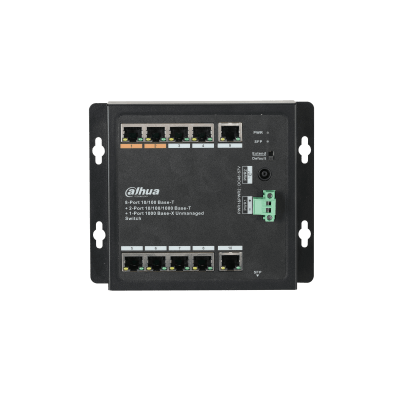

DH-PFS3111-8ET-96-F
MSRP
Layer-two Unmanaged PoE Switch
> Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X standards
> MAC auto study and aging, MAC address list capacity is 8K
> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 and 2 support Hi-PoE 60W power supply
> Adopts metal structure
> High protection grade, supports common mode 4KV, differential mode 2KV
> Supports DC 48V-DC 57V power supply and dual power backup
> Supports -30°C~65°C operating temperature
> Supports two types of transmission modes, which are Default and Extend.Default mode is standard Ethernet mode with transmission bandwidth of 100 Mbps and supports transmission distance up to 100M via CAT6.Extend mode is long distance transmission mode with transmission bandwidth of 10 Mbps and supports transmission distance up to 250M via CAT6. This function only supports port1-4
