Description

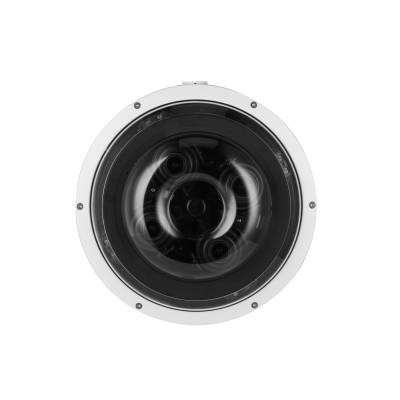

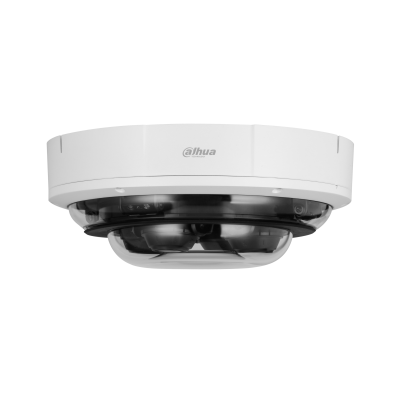

DH-IPC-PDBW82041-B360-S2
DH-IPC-PDBW82041P-B360-E4-2812-S2
MSRP
> Four 5-MP 1/2.7″ CMOS image sensor, low illuminance, high image definition.
> 4-channel stream output, and each channel can output max. 5 MP (2592 × 1944) @25/30 fps.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> The intelligent functions of 4 channels can be enabled at the same time, including face detection, IVS, and people counting.
> Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, and parking detection.
> FlexStream: The 4 channels of images can be viewed in a defined channel with 1 channel stream. That is the multiple images can be displayed in 1 channel.
> Web5.0 interface design, which is friendly to users, and easy for operation.
> Built-in IR LED illuminator, and the max. illumination distance is 30 m.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply; 12 VDC power output, and max. current 165mA; easy for installation.
> IP67 and IK10 protection.
>Anti-corrosion protection (optional).
Description
Related products
DH-IPC-HDBW5442EP-ZHE-2712-DC12AC24V-S3
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC
. > 12 VDC/24 VAC/PoE power supply; ePoE.
> IP67 and IK10 protection.
>SMD 3.0.
DH-IPC-HDBW5442H-ZHE
· 4MP, 1/1.8” CMOS image sensor, low illuminance, high image definition
· Outputs max. 4MP (2688 × 1520) @30 fps
· Max. IR distance: 40 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Alarm: 3 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card
· 24V AC/PoE/12V DC power supply (power input ports vary depending
on power supply)
· ePoE, IP67, IK10 protection
· Anti-corrosion coating (optional)
· Supports junction box mount
· SMD Plus
DH-IPC-HDBW5442R-ASE
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30fps
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
>SMD 3.0.
DH-IPC-HDW5442TM-ASE
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30fps
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
>SMD 3.0.
DH-IPC-HF5241FP-ZE-S3
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920×1080) @25/30 fps.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 1 TB Micro SD card, built-in MIC.
> Supports P-iris, the camera can control the iris more precisely for better image effect.
> 24 VAC/12 VDC/PoE power supply; ePoE.
>SMD 3.0.
DH-IPC-HFW5442E-ASE
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30fps
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
>IP67 protection.
>SMD 3.0.
DH-IPC-HFW5442EP-ZE-2712
- 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688 × 1520) @ 30 fps.
- Built-in IR LED, and the max. illumination distance is 60 m.
- ROI, SVC, SMART H.264+ / H.265+, AI H.264 / H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Three switchable intelligent resources: IVS, face detection, and people counting.
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.
- 12 VDC / PoE power supply, easy for installation.
- IP67 and IK10 protection; ePoE.
- SMD 3.0.
DH-IPC-HFW5442HP-ZHE-2712F-DC12AC24V-S3
· 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition
image.
· Outputs max. 4 MP (2688×1520) @25/30 fps.
· Built-in IR LED, and the max. illumination distance is 60 m.
· ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after
filter, flexible coding, applicable to various bandwidth and storage
environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.
· With deep learning algorithm, it supports: video metadata, smart
sound detection, IVS, face detection, smart object detection, and
people counting, etc.
· Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power
output; supports max. 512 G Micro SD card, built-in dual MICs.
· 24 VAC/12 VDC/PoE power supply; ePoE.
· IP67 and IK10 protection, heater.
· SMD 3.0.
· Anti-corrosion model optional.
