Description

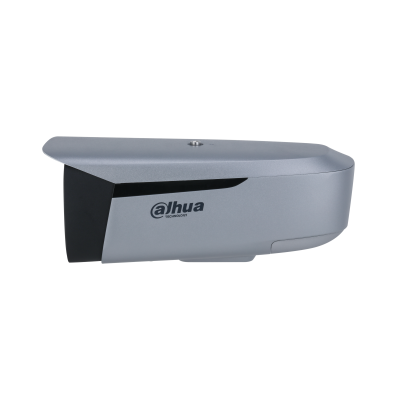

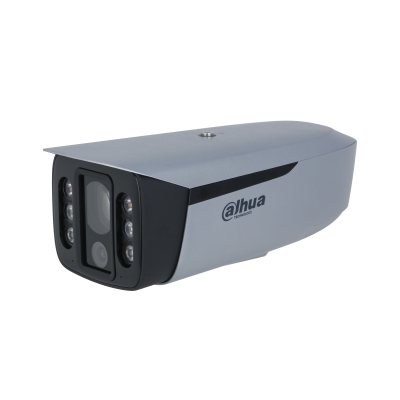

DH-IPC-MFW7842K1P-Z-0832-T20-0360B
DH-IPC-MFW7842K1-Z4-T20
MSRP
> 8-MP 1/1.7″ CMOS image sensor and 2-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> Built-in GPU chip and deep learning algorithm, which can improve the detection accuracy.
> Switch among five intelligent resources: IVS, face detection, video metadata, people counting and face recognition.
> Built-in warm light/IR LED that has a maximum IR illumination distance of 100 m and warm light distance of 60 m.
> 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 3 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 256 G Micro SD card.
> Designed with the Dahua Noise Reduction Algorithm and built-in dual microphones, the device performs active noise control, eliminating noise of wind scale 3. It has a pick-up distance up to 20 m.
> Built-in Hi-Fi large-diameter speaker covers an auditory range of 30 m when used indoors.
> Sound and light alarms are generated when an alarm is triggered.
> 12 VDC/PoE power supply, 12 VDC power output, max. current 165 mA, easy for installation.
>IP67 protection.
Description
Related products
DH-IPC-HDBW5241EP-ZE-0735-DC12AC24V-S3
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920×1080) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
>SMD 3.0.
DH-IPC-HF5241FP-ZE-S3
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920×1080) @25/30 fps.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 1 TB Micro SD card, built-in MIC.
> Supports P-iris, the camera can control the iris more precisely for better image effect.
> 24 VAC/12 VDC/PoE power supply; ePoE.
>SMD 3.0.
DH-IPC-HFW5241E-ASE
The parameters and datasheets below can only be applied to
5241-ASE-S3 series.
· 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition
image.
· Outputs max. 2MP (1920×1080) @25/30fps.
· Built-in IR LED, and the max. illumination distance is 50 m.
· ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after
filter, flexible coding, applicable to various bandwidth and storage
environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.
· With deep learning algorithm, it supports: video metadata, smart
sound detection, IVS, face detection, smart object detection, and
people counting, etc.
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD
card, built-in MIC.
· 12 VDC/PoE power supply; ePoE.
· IP67 protection.
· SMD 3.0.
DH-IPC-HFW5442EP-ZE-2712
- 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2688 × 1520) @ 30 fps.
- Built-in IR LED, and the max. illumination distance is 60 m.
- ROI, SVC, SMART H.264+ / H.265+, AI H.264 / H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Three switchable intelligent resources: IVS, face detection, and people counting.
- Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.
- 12 VDC / PoE power supply, easy for installation.
- IP67 and IK10 protection; ePoE.
- SMD 3.0.
DH-IPC-HFW5442HP-ZHE-0832-DC12AC24V-ATC-S3
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 1 TB Micro SD card, built-in dual Mic.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
>Anti-corrosion model optional.
DH-IPC-HFW5442HP-ZHE-2712F-DC12AC24V-ATC-S3
- Dahua WizMind IP Camera.
- 4MP@25/30ips, AI-H.265+/Smart265+. ICR, 0.0006/0.0003 lux, Smart IR 60m. 2.7~12mm motorized optics.
- WDR 140dB, 4 ROI. Perimeter protection, face detection, people counting, heat map. Incorporates microphone and 1 input / 1 audio output. 3 inputs / 2 alarm outputs.
- BNC video…
DH-IPC-HFW5442T-ASE
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
>SMD 3.0.
DH-IPC-HFW5442T-SE
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
>SMD 3.0.
