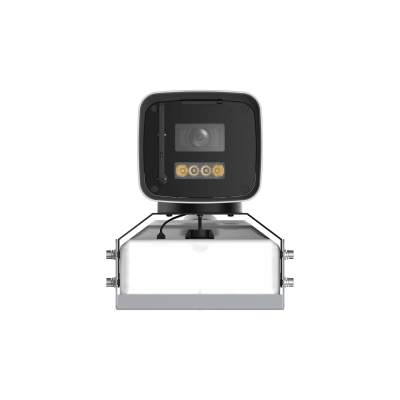

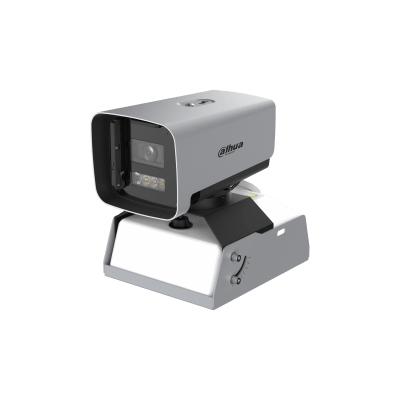

DH-IPC-HFW8449J-Z-SC
MSRP
• 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
• Outputs max 4 MP (2688 × 1520) @25/30 fps.
• Built-in multi-core light, the max IR distance is 60 m and the max warm light distance is 40 m.
• With deep learning algorithm, it supports: IVS, video metadata, face detection.
• Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-485; supports max 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; supports two-way talk.
• 12 VDC/PoE power supply; 12 VDC power output, and max current 165mA, easy for installation.
• IP67 protection.
• The built-in gradienter visualizes the horizontal gradient, simplifying installation.
• Supports window self-cleaning with a built-in 2.6 L large-capacity water tank. Once the tank has been filled, it can keep working for 3 years (cleaning once per week).
• Automatically turns on smart PDS heating for the window based on the ambient temperature to prevent rain, snow, or fog from affecting the image.
• Wraparound sunshield reduces dust and rain on the window and minimizes stray light outside the field of view that might affect the image.
• The built-in electrode probe detects the water amount in the tank, simplifying maintenance. * The cleaning liquid is not supplied. We recommend you use antifreeze windshield water fluid which can withstand –40 °C (–40 °F) environment
Description
Related products
DH-IPC-HDBW5241R-ASE
- Image Sensor: 1/2.8" 2MP progressive scan STARVIS CMOS.
- Resolution: Outputs up to 2MP (1920 × 1080) at 30fps.
- Lens: 2.8mm fixed lens (other options available).
- AI Features: Includes face capture, perimeter protection, and people counting.
- IR Illumination: Built-in IR LED with a maximum range of 40m.
- Durability: IP67-rated for water and dust resistance, and IK10-rated for vandal resistance.
- Video Compression: Supports H.265 and H.264 triple-stream encoding.
DH-IPC-HDBW5442HP-ZHE-2712F-DC12AC24V-S3
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 1 TB Micro SD card, built-in dual Mic.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
>Anti-corrosion model optional.
DH-IPC-HDW5241TM-ASE
> 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2MP (1920×1080) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
>SMD 3.0.
DH-IPC-HFW5241E-ASE
The parameters and datasheets below can only be applied to
5241-ASE-S3 series.
· 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition
image.
· Outputs max. 2MP (1920×1080) @25/30fps.
· Built-in IR LED, and the max. illumination distance is 50 m.
· ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after
filter, flexible coding, applicable to various bandwidth and storage
environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
to various monitoring scenes.
· With deep learning algorithm, it supports: video metadata, smart
sound detection, IVS, face detection, smart object detection, and
people counting, etc.
· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD
card, built-in MIC.
· 12 VDC/PoE power supply; ePoE.
· IP67 protection.
· SMD 3.0.
DH-IPC-HFW5442HP-ZHE-0832-DC12AC24V-ATC-S3
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 120 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; analog output; power output; supports max. 1 TB Micro SD card, built-in dual Mic.
> 24 VAC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.
>Anti-corrosion model optional.
DH-IPC-HFW5442T-SE
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688×1520) @25/30fps.
> Built-in IR LED, and the max. illumination distance is 80 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 1 TB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
>SMD 3.0.
DH-IPC-HFW5449T1P-ZE-LED-2712
> 4MP 1/1.8" CMOS image sensor, low illuminance, high image definition.
> Outputs max. 4MP (2688 × 1520) @30 fps.
> Built-in warm illuminator, and the max. illumination distance is 70 m.
> ROI, SVC, SMART H.264 +/H.265+, AI H.264/H.265,flexible coding, ap plicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker, support two-way talk.
> 12V DC/PoE power supply.
> ePoE, IP67 protection.
>SMD 3.0.
DH-IPC-MFW5241T2P-E3-ASE-0360/1200/2500B
> 3 × 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25 fps through channel1-3.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in 8 IR LEDs, and the max. illumination distance is up to 100 m.
> Supports long-range perimeter protection. The camera can detect humans and vehicles up to 100 m away and more.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports Perimeter Protection, including Intrusion and tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card; built-in dual Mic and speaker, supports two-way talk.
> ePoE.
>IP67 and IK10 protection.
