Description

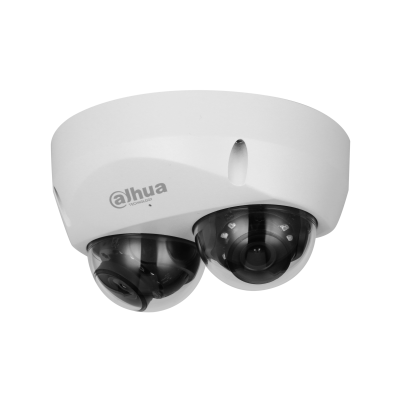

DH-IPC-HDBW5441FP-AS-E2-0280B
DH-IPC-HDBW5441FP-AS-E2-0360B
DH-IPC-HDBW5441F-AS-E2
MSRP
> 4 MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2560 × 1440)@25/30 fps.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and parking detection.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, and face exposure.
> People counting: Queue management, people counting in area, entered/exited people counting, and generating and exporting report (day/month/year).
> Dual-channel intelligence can be enabled at the same time and independent of each other.
> Supports dual-channel images previewed in the first channel, saving license costs.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in MIC.
> 12 VDC/PoE power supply.
> IP67 and IK10.
>SMD 3.0.
