DH-HAC-HDBW1200EP-0360B-S5

MSRP

Max 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (2.8mm optional)
Max. IR length 30m, Smart IR
IP67, IK10, DC12V

DH-HAC-HDW1239TLQP-LED-0280B-S2

MSRP

1/2.8" CMOS; 1920 (H) × 1080 (V),
2MP; Progressive; 0.001 Lux/F1.6,
30IRE, 0 Lux LED on; Up to 20 m (65.6 ft);
Fixed lens; CVI/CVBS/AHD/TVI switchable;
BLC Mode: BLC / HLC / DWDR; WDR: 130 dB;
White Balance: Auto / Area WB;
Noise Reduction: 3D NR;
Video output choices of CVI/TVI/AHD/CVBS by one BNC port;
One channel built-in mic (-A); 12V DC ±30%;
Casing: Metal inner core + plastic cover + plastic pedestalen

DH-HAC-HDW1509TP-A-LED-0280B-S2

MSRP

> 5MP 1/2.8" CMOS Image Sensor > 5MP (2880 × 1620)@25 fps > Built-in warm lights (Full-Colour) Max Illumination distance: 40m > Built-in-Mic >IP67 Rated

DH-HAC-HFW1200CMP-A-0280B-S5

MSRP

DH-HAC-HFW1200CMP-0280B-S5
1/2.7" CMOS sensor with 2 megapixels
Digital resolution: 1080P (1920x1080), 720P (1280x720), 960H (960x756)
Frames per second: 25 fps @1080P (CVI/TVI/AHD), 25 fps @720P (CVI/TVI/AHD), 50 ips @720P (CVI/TVI)
4-in-1 output switchable via OSD or via UTC controller DAHUA-498 (PFM820)
Day/night mode with removable mechanical filter (ICR)
0,02 lux F1.9 (color) / 0 lux IR On
Smart IR: 2 leds, up to 30 meters
2.8 mm fixed optics
Viewing Angle: 101°(H), 54°(V), 119°(D)
OSD via coaxial (1080P video up to 800 meters, 720P up to 1200 meters)
Picture modes: BLC, HLC, digital WDR, 2D-NR, digital Defog, Mirror.
Automatic and manual white balance
automatic and manual gain control
Supports 8-zone privacy masking
Power supply: 12V DC (±30%)
Consumption: 2.7W (max.)
Storage temperature from -40°C ~ +60°C
Operating temperature range -40°C ~ +60°C
Relative humidity: <95% (non-condensing)
IP67 degree of protection
Metal case
Dimensions: 69,7 (An) x 70 (Al) x 166,6 mm
Weight: 330 g
3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(Rotation)

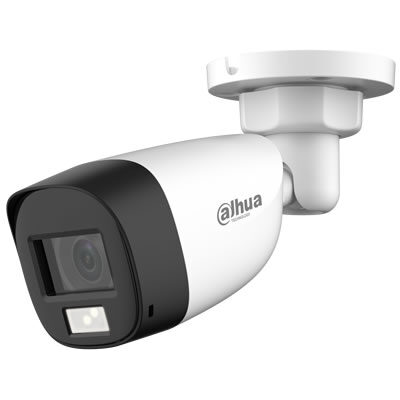

DH-HAC-HFW1239TLMP-IL-A

MSRP

2MP Smart Dual Illuminators Bullet Camera
* The parameters and datasheets below can only be applied to1239-IL series.
* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
Smart Dual Illuminators> Max. 30 fps@1080p
40 m illumination distance
Super Adapt
130 dB true WDR, 3D NR
Built-in MIC (-A)
3.6 mm fixed lens (2.8 mm optional)
CVI/CVBS/AHD/TVI switchable
IP67, 12 VDC
